Puntatrice Telwin PTE 18 LCD 400V
Puntatrice Telwin PTE 18 LCD 400V

Puntatrice Telwin PTE 18 LCD 400V

TelwinSKU: 824050
Prezzo:
€4,119.00

IVA inclusa. Spedizione gratuita da 99€

Guadagna punti fedeltà per ogni acquisto. Scopri di più

Aggiungi alla lista dei desideri

Hai bisogno di fattura?

In fase di checkout potrai inserire tutte le informazioni necessarie per richiedere fattura elettronica.

Descrizione

Puntatrice Telwin PTE 18 LCD 400V

PTE 18 LCD 400V

cod. 824050

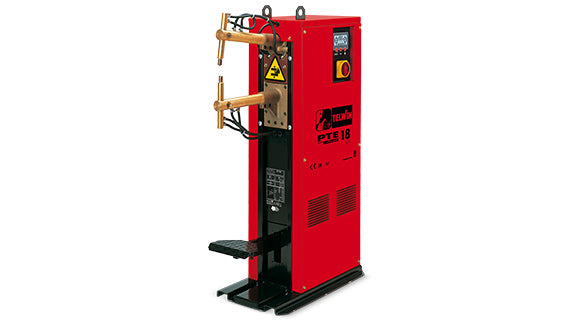

Saldatrice a resistenza (puntatrice) a colonna, a braccio oscillante, con controllo digitale a microprocessore.
Il pannello digitale LCD multifunzione consente di operare: in modalità EASY (impostazione della corrente e del tempo di puntatura); in modalità EXPERT (impostazione di diversi parametri di puntatura) con la possibilità di salvare fino a 20 programmi personalizzati. Funzionamento in continuo e pulsato garantisce ottime saldature sui vari tipi di acciaio.
Caratteristiche:
- regolazione della corrente di puntatura (%), tempo di puntatura (cicli), forza di chiusura degli elettrodi
- scelta di vari parametri del ciclo di puntatura (tempo di accostaggio, tempo di rampa, tempo di saldatura, tempo di pausa e numero di impulsi)
- display LCD di facile lettura
- azionamento meccanico a pedale
- protezione termica con segnalazione
Il modello richiede il raffreddamento ad acqua degli elettrodi e dei bracci.


2 PH 400V2 PH 400V
CERTIFICAZIONE EACCERTIFICAZIONE EAC

PTE 18 LCD 400V

cod. 824050


CODICE824050
FORZA MASSIMA AGLI ELETTRODI190 daN
TENSIONE DI RETE BIFASE400 V
SPORGENZA BRACCI330 mm
FREQUENZA DI RETE50 / 60 Hz
RAPPORTO DI INTERMITTENZA15 %
CORRENTE DI PUNTATURA MAX9700 A
GRADO DI PROTEZIONEIP20
TENSIONE A VUOTO MAX2,6 V
DIMENSIONI79 - 32 - 128 cm
POTENZA NOMINALE X=50%22 k VA
PESO118 kg
POTENZA NOMINALE X=50%15 k VA
CODICE EAN800489797155 1
FATTORE DI POTENZA (cosphi)0,7
