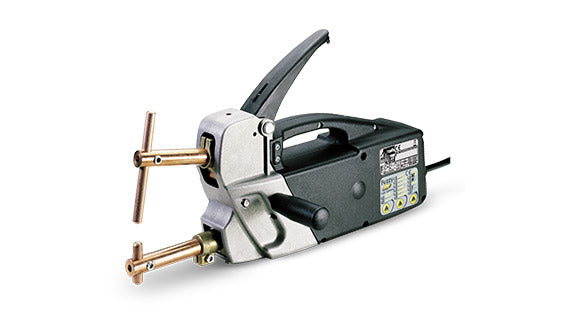

Saldatrice Telwin a resistenza portatile DIGITAL MODULAR 400
Saldatrice Telwin a resistenza portatile DIGITAL MODULAR 400

Saldatrice Telwin a resistenza portatile DIGITAL MODULAR 400

TelwinSKU: 823017
Prezzo:
€1.015,37

IVA inclusa.

Guadagna punti fedeltà per ogni acquisto. Scopri di più

Aggiungi alla lista dei desideri

Sei una società Europea?

Acquista in esenzione IVA inserendo il tuo VAT ID direttamente nel carrello.

Descrizione

Saldatrice Telwin a resistenza portatile DIGITAL MODULAR 400

DIGITAL MODULAR 400 400V

cod. 823017
Saldatrice a resistenza (puntatrice) controllata a microprocessore. Implementa un nuovo sistema di controllo Fuzzy logic che semplifica l'utilizzo e aumenta le qualità del punto.
Adatta per la puntatura di lamiere con spessore massimo di 2+2mm.
Caratteristiche:
- regolazione automatica della corrente e del tempo di puntatura in funzione dello spessore del materiale
- selezione tra funzionamento continuo e pulsato (adatto per lamiere con alto coefficiente di snervamento high stress)
- forza sui bracci regolabile da 40 a 120Kg (con bracci L=120mm)
- impugnatura con materialeisolante termico
- protezione termostatica.

2 PH 400V2 PH 400V
MARCATURA CEMARCATURA CE
MICROPROCESSOREMICROPROCESSORE
CERTIFICAZIONE EACCERTIFICAZIONE EAC

DIGITAL MODULAR 400 400V

cod. 823017

CODICE823017
FATTORE DI POTENZA (cosphi)0,9
TENSIONE DI RETE BIFASE400 V
SPESSORE MAX PUNTATURA 2 LATI2 + 2 mm
FREQUENZA DI RETE50 / 60 Hz
RAPPORTO DI INTERMITTENZA1,5 %
CORRENTE DI PUNTATURA MAX6300 A
GRADO DI PROTEZIONEIP20
TENSIONE A VUOTO MAX2,5 V
DIMENSIONI44 - 10 - 18,5 cm
POTENZA ASSORBITA MAX13 kW
PESO10,3 kg
POTENZA NOMINALE X=50%2,3 kW
CODICE EAN800489746566 1
FUSIBILE DI RETE16 A
