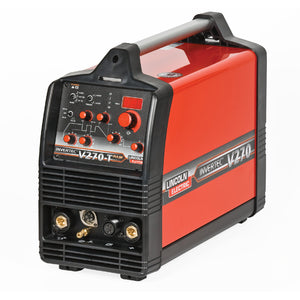

Saldatrice Lincoln TIG INVERTEC V270-TP
Saldatrice Lincoln TIG INVERTEC V270-TP

Saldatrice Lincoln TIG INVERTEC V270-TP

Economisez 7%
LincolnSKU: K12024-1
Prix:
€2.949,64 €3.170,08

Taxes incluses

Guadagna punti fedeltà per ogni acquisto. Scopri di più

Aggiungi alla lista dei desideri

Sei una società Europea?

Acquista in esenzione IVA inserendo il tuo VAT ID direttamente nel carrello.

Description

Saldatrice Lincoln TIG INVERTEC V270-TP

Pensata e progettata per resistere nel tempo

L' Invertec® V270-T & V270-T PULSE sono leggere ma robusta, il che le rende portatili e adatta per ogni tipo di applicazione TIG anche negli ambienti più rischiosi.

Il commutatore di alimentazione 230/400V monofase della Invertec V270-T Pulse e la sua compatibilità con motogeneratori ne permette l’impiego ovunque in cantieri e officine. Comprende fra le sue caratteristiche l’innesco del TIG in HF, in Lift-TIG, 2 o 4 tempi, rampa di discesa variabile e Comando del post-gas, uno strumento digitale di preimpostazione con funzione Hold (mantenimento in visione dei valori) e Pulsazione Variabile incorporata.

General

Polarity
DC
Process
Stick, Lift TIG, TIG HF
Input Phase
3ph
Sheet Thickness
0.6 - 8 mm
Technology
DC inverter
PFC
No
Puls mode
Yes
Maximum Output Current
270 A


K12024-1



Caratteristiche Principali

  • Eccellenti caratteristiche d'arco con una ampia gamma di applicazioni
  • Compatibile con motogeneratori, ideale per l’uso in cantiere.
  • Innesco HF e Lift TIG.
  • Pannello di Comando con tutte le funzioni e di uso semplice, per una facile impostazione dei parametri di saldatura.
  • Pulsazioni ad alta velocità per regolare la concentrazione dell’arco, ridurre le distorsioni e aumentare la velocità di avanzamento.

Alimentazione

  • 400/3/50/60

Procedimenti

Elettrodo, Lift TIG, TIG HF, TIG Pulse







Pensata e progettata per resistere nel tempo

L' Invertec® V270-T & V270-T PULSE sono leggere ma robusta, il che le rende portatili e adatta per ogni tipo di applicazione TIG anche negli ambienti più rischiosi. Il commutatore di alimentazione 230/400V monofase della Invertec V270-T Pulse e la sua compatibilità con motogeneratori ne permette l’impiego ovunque in cantieri e officine. Comprende fra le sue caratteristiche l’innesco del TIG in HF, in Lift-TIG, 2 o 4 tempi, rampa di discesa variabile e Comando del post-gas, uno strumento digitale di preimpostazione con funzione Hold (mantenimento in visione dei valori) e Pulsazione Variabile incorporata.

  • Caratteristiche d’arco eccellenti con una ampia gamma di elettrodi.
  • Innesco HF e Lift TIG
  • Compatibile con motogeneratori - ideale per l’uso in cantiere
  • Pannello di Comando con tutte le funzioni e di uso semplice - per una facile impostazione dei parametri di saldatura
  • Pulsazioni ad alta velocità - per regolare la concentrazione dell’arco, ridurre le distorsioni e aumentare la velocità di avanzamento.
  • Soddisfa le normative -IEC974-1, ROHS e CE



  • La funzione "Fan as needed" (F.A.N.™) “Ventola quando serve” incorporata -riduce i consumi di energia e l’ingresso di fumi e polvere.

    •

    ALIMENTAZIONE
    • 400/3/50/60
    FATTORE DI SERVIZIO
    • 270A/30.8V@35%
    • 200A/28V@100%
    CORRENTE ASSORBITA
    • 20A
    CORRENTE D'USCITA
    • 5-270A
    DIMENSIONI ALT X LA X LU (MM) 385 mm x 215 mm x 480 mm
    PESO NETTO 14.5 kg



     IN DOTAZIONE

    • Cavo alimentazione (2m)
    • Cinghia trasporto
    • Kit collegamento gas
